Product description
PC1000 × 1000 limestone hammer crusher hammer crusher sand aggregate production line of crusher in cement plant
1. Description
The coarse powder hammer mill is a new generation of crushing equipment manufactured by Banghuai Factory for the production of 0-3MM particles and coarse powder according to customer needs. This machine follows part of the working principle of the crusher, makes up for the insufficiency of the size range of the finished products of traditional mills, and becomes the core equipment for producing coarse powder particles.
widely used in metallurgy, mining, chemical, cement, coal gangue, construction, sand, refractories, glass and ceramics and other industrial and mining enterprises, engaged in the aggregate crushing operation. It is mainly suitable for crushing various soft.
It is suitable for crushing limestone, calcite, dolomite, barite, talc, calcium carbonate, gypsum, bentonite and other non-sticky materials.
2. Technical Parameters
| Model | Rotor Diameter/mm | Rotor Width/mm | Max Feeding Size/mm | Finished particle size/mm | Capacity (t/h) | Power/Kw | Overall SizeL*W*H/mm |
| PC400x300 | 400 | 600 | < 100 | 5-10 | 5-10 | 11 | 855*795*860 |
| PC600x400 | 600 | 400 | < 220 | 5-15 | 10-22 | 22 | 1150*1095*1230 |
| PC800x600 | 800 | 600 | < 300 | 5-20 | 18-40 | 45 | 2360*1490*141 |
| PC1000X800 | 1000 | 800 | < 350 | 5-35 | 25-50 | 75 | 1600*1390*1575 |
| PC1000X1000 | 1000 | 1000 | < 350 | 5-35 | 30-55 | 132 | 1800*1590*1775 |
| PC1250X1250 | 1250 | 1250 | < 350 | 5-35 | 35-65 | 180 | 2000*1600*1890 |
| PC1400X1400 | 1400 | 1400 | < 350 | 5-35 | 50-100 | 220 | 2365*1870*2220 |
| PC1600*1600 | 1600 | 1600 | < 350 | 5-35 | 100-150 | 480 | 3050*2850*2800
|
3. Product advantages
1. High production capacity and large crushing ratio
This machine has the performance advantages of a crusher. Compared with the traditional coarse powder mill, it has higher output, larger crushing ratio and very high yield. It is suitable for the production of 0-8mm coarse sand and coarse powder.
2. Stable performance and uniform particle size
The optimized cavity design and unique working principle ensure the excellent performance of the European version of the high-efficiency crushing mill. The machine comes with a grate sieve, the crushed materials can be discharged through the grate, and the unqualified will be left in the crushing cavity to ensure the uniform particle size of the finished product.
3. Simple structure and easy maintenance
The European version of the high-efficiency crushing mill is mainly composed of casing, rotor, bearing iron and grate bars. The casing is inlaid with high manganese steel liners, which is resistant to pressure and wear resistance and has a long service life; it is equipped with hydraulic adjustment devices. The top can be opened back and forth, which is convenient and quick to maintain and save downtime.
4. Low investment cost and convenient management
The European version of the high-efficiency crushing mill has a very high cost performance. Compared with the traditional mill, it has a simple working process, a small area, easy infrastructure, lower investment costs, and more convenient management.
4. Working principle

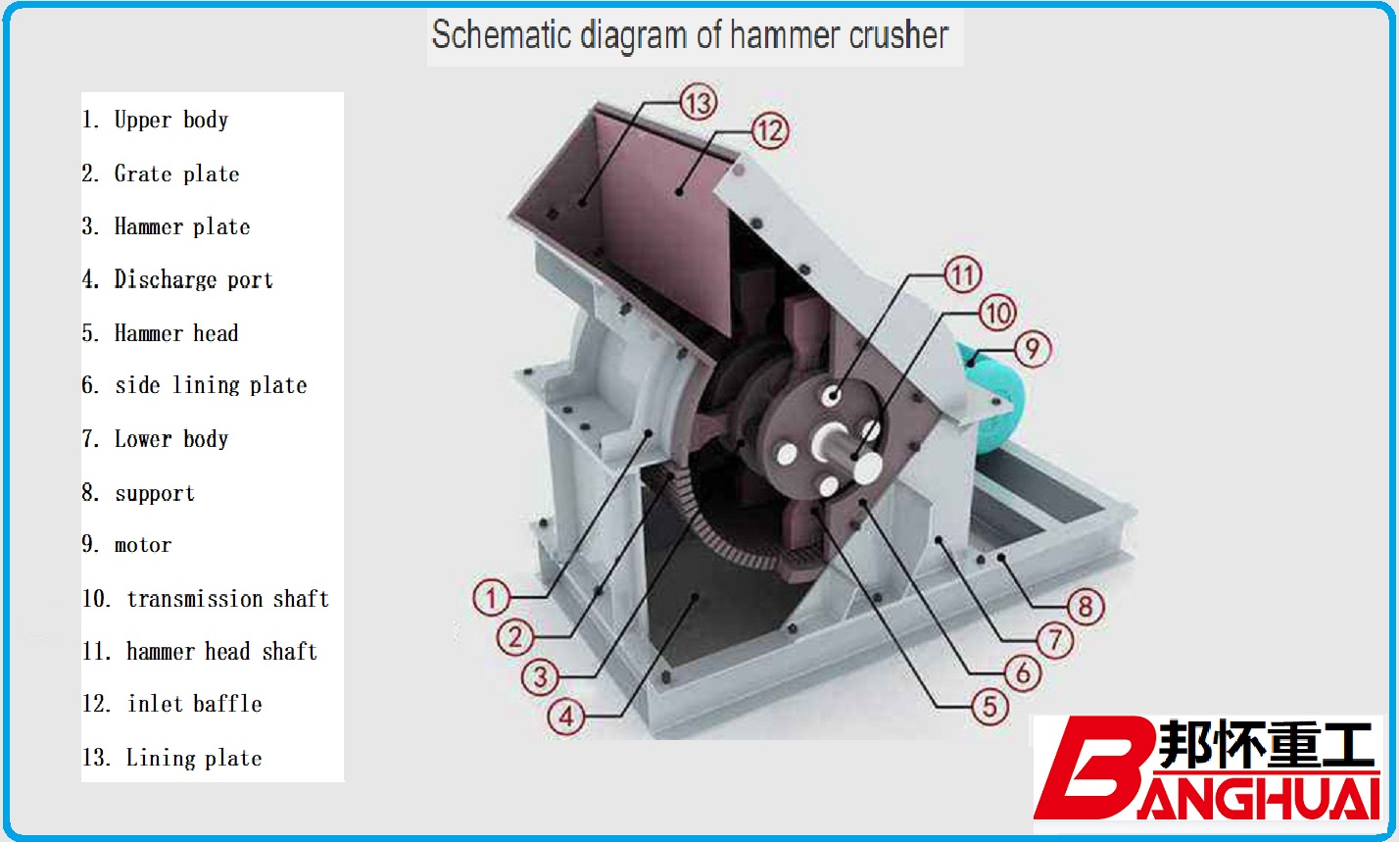

The main machine drives the main shaft through the motor and the triangular belt, so that the rotor rotates. After the large piece of material entering the crushing cavity from the inlet port, is crushed by the high-speed moving plate hammer.
The materials crushed to meet the particle size requirements are directly discharged from the bottom grate, and the materials that do not meet the particle size requirements are repeatedly crushed by the hammer and liner on the rotor in the crushing cavity until they meet the particle size requirements. In order to avoid clogging, the water content of the crushed materials generally does not exceed 20%.
5. Factory manufacturing and transport
